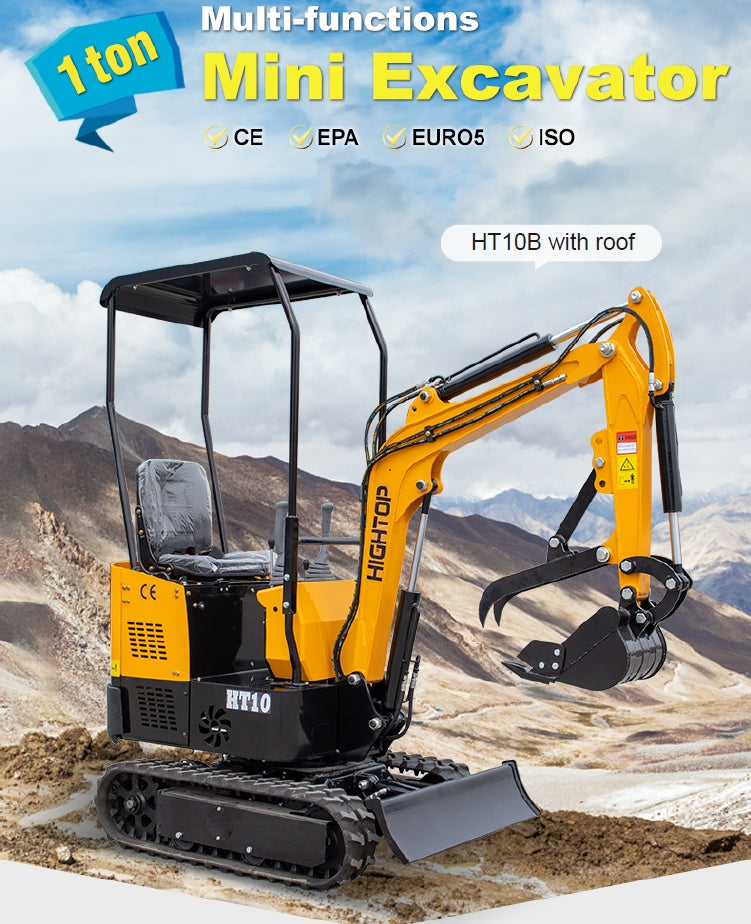

The Multi Function 1 Ton Mini Excavator - HT10 is perfect for hobbyists and recreational users seeking to complete DIY projects. This versatile machine handles various tasks with ease, providing powerful digging and lifting capabilities without the bulk of larger equipment. Its lightweight frame ensures easy transport and manoeuvrability, making it ideal for small-scale projects and personal use. Experience convenience and efficiency with the HT10, designed to bring professional-grade functionality to your backyard or hobby site.

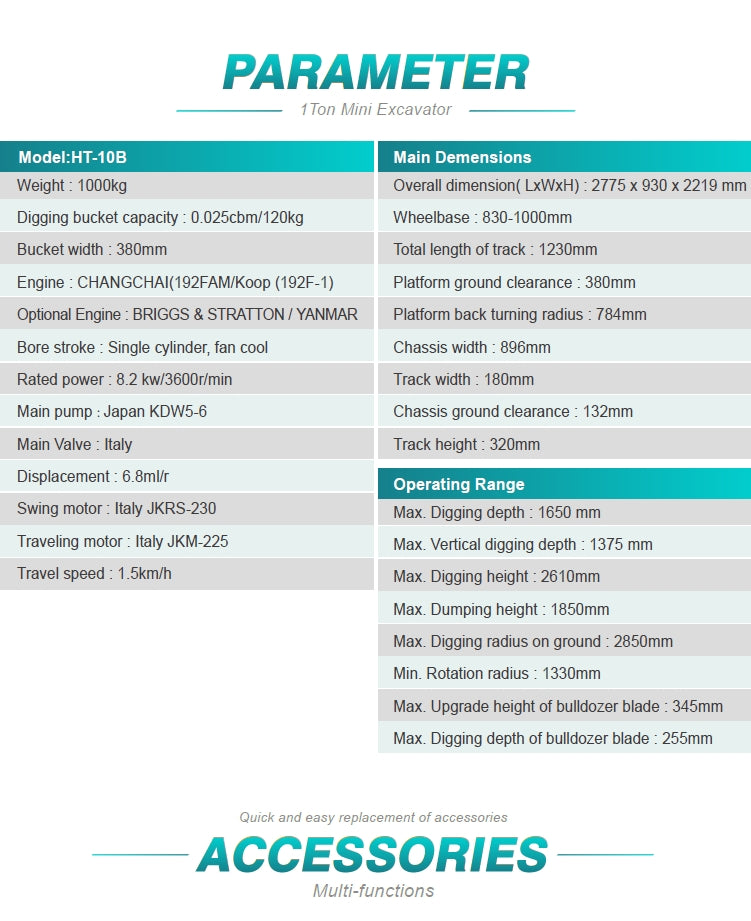

Overall Specifications
| Category | Specification |
|---|---|
| Model | HT-10 |
| Weight | 1000kg |
| Digging bucket capacity | 0.025cbm / 120kg |
| Bucket width | 380mm |
| Engine | CHANGCHAI (192FAM) / Koop (192F-1) |
| Optional Engine | BRIGGS & STRATTON / YANMAR |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 8.2kW / 3600r/min |
| Main pump | Japan KDW5-6 |
| Main valve | Italy |
| Displacement | 6.8ml/r |
| Swing motor | Italy JKRS-230 |
| Traveling motor | Italy JKM-225 |
| Travel speed | 1.5km/h |
Operation Specifications
| Range | Value |
|---|---|
| Max. digging depth | 1650mm |
| Max. vertical digging depth | 1375mm |
| Max. digging height | 2610mm |
| Max. dumping height | 1850mm |
| Max. digging radius on ground | 2850mm |
| Min. rotation radius | 1330mm |
| Max. upgrade height of bulldozer blade | 345mm |
| Max. digging depth of bulldozer blade | 255mm |
Dimensions
| Dimension | Value |
|---|---|
| Overall (L × W × H) | 2775 × 930 × 2219mm |
| Wheelbase | 830 - 1000mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380mm |
| Platform back turning radius | 784mm |
| Chassis width | 896mm |
| Track width | 180mm |
| Chassis ground clearance | 132mm |
| Track height | 320mm |
The Multi Function 1 Ton Mini Excavator - HT10 is perfect for hobbyists and recreational users seeking to complete DIY projects. This versatile machine handles various tasks with ease, providing powerful digging and lifting capabilities without the bulk of larger equipment. Its lightweight frame ensures easy transport and manoeuvrability, making it ideal for small-scale projects and personal use. Experience convenience and efficiency with the HT10, designed to bring professional-grade functionality to your backyard or hobby site.
Overall Specifications
| Category | Specification |
|---|---|
| Model | HT-10 |
| Weight | 1000kg |
| Digging bucket capacity | 0.025cbm / 120kg |
| Bucket width | 380mm |
| Engine | CHANGCHAI (192FAM) / Koop (192F-1) |
| Optional Engine | BRIGGS & STRATTON / YANMAR |
| Bore stroke | Single cylinder, fan cool |
| Rated power | 8.2kW / 3600r/min |
| Main pump | Japan KDW5-6 |
| Main valve | Italy |
| Displacement | 6.8ml/r |
| Swing motor | Italy JKRS-230 |
| Traveling motor | Italy JKM-225 |
| Travel speed | 1.5km/h |
Operation Specifications
| Range | Value |
|---|---|
| Max. digging depth | 1650mm |
| Max. vertical digging depth | 1375mm |
| Max. digging height | 2610mm |
| Max. dumping height | 1850mm |
| Max. digging radius on ground | 2850mm |
| Min. rotation radius | 1330mm |
| Max. upgrade height of bulldozer blade | 345mm |
| Max. digging depth of bulldozer blade | 255mm |
Dimensions
| Dimension | Value |
|---|---|
| Overall (L × W × H) | 2775 × 930 × 2219mm |
| Wheelbase | 830 - 1000mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380mm |
| Platform back turning radius | 784mm |
| Chassis width | 896mm |
| Track width | 180mm |
| Chassis ground clearance | 132mm |
| Track height | 320mm |
- Regular price
- $8,800.00
